FARMS

Off-grid solutions for farming & rural area needs.

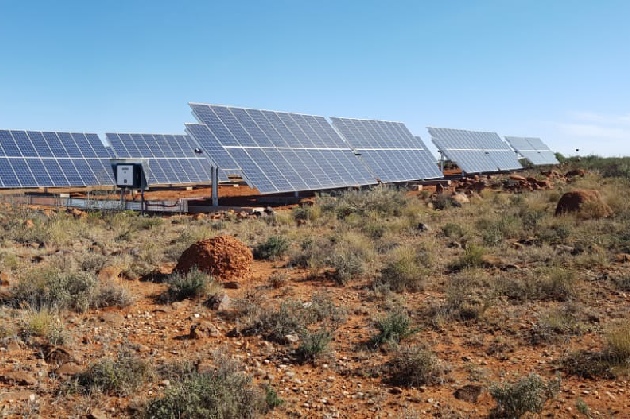

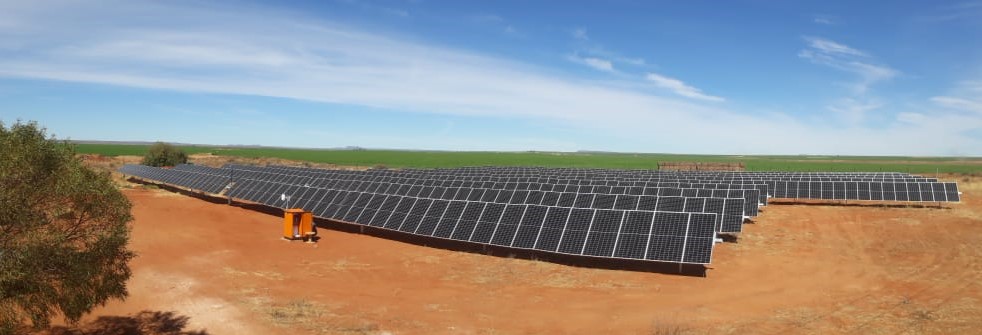

DISSELFONTEIN

Grid tied Solution with Eskom wheeling.


The plant was designed to support an irrigation farmer at Disselfontein close to Hopetown.  The farmer had a 75kw pump that irrigated via a Pivot on a pre-scheduled program due to insufficient Eskom power.


Yield & Performance  | The plant was over-designed with a wheeling agreement with Eskom.  The 181kwp plant was built in 6 weeks and is delivering 1,3Mwh and 1.7Mwh per day.  The farmer irrigates between 8-11hrs per day with this system.


DISSELFONTEIN

Northern Cape

SUURBERG

Eastern Cape

SUURBERG

Off Grid Solution with battery and generator backup.


The system consists of 2 x 5000TL sunnyboys, 2 x S60H single axis trackers, 1 x 8.0H Sunny island, 52 x 255 Watt Multicrystalline solar modules, 80KW battery bank, 5Kw backup generator with all the communication products.


Yield & Performance  | 13,6kWp, 106 - 135kWh per day

SOLAR + PLANTS

Large Scale renewable energy generation.

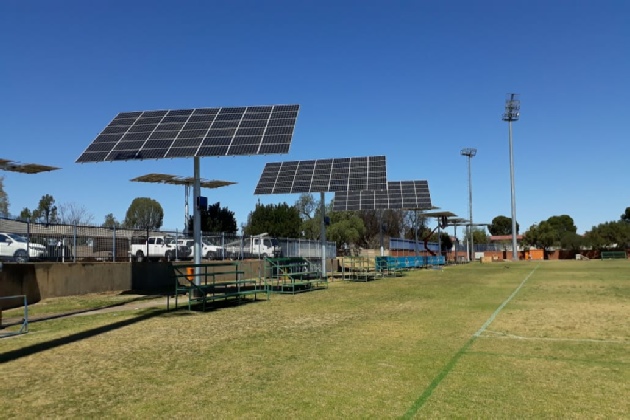

CUT

Bloemfontein

CENTRAL UNIVERSITY OF TECHNOLOGY

Grid tied Solution on main ring for own consumption.


CUT (The Central University of Technology) embarked on an energy saving journey and is now home to a world-class solar project.


Yield & Performance  | The 12 D100 Trackers where installed and integrated with the main ring of the campus.  The system is a 151kwp system and generating between 1235kwh and 1400kwh per day. The trackers generation period is between 11-13,4hrs per day.

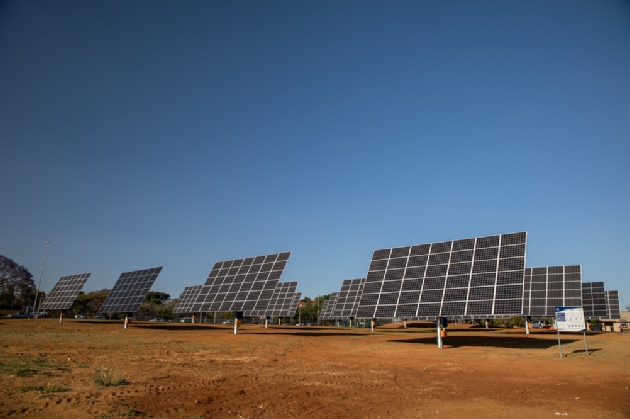

CSIR

Pretoria

CSIR MAIN CAMPUS, PTA

A study to evaluate the performance and efficiency of the Dual Axis Deger Tracker.


17 x Dual axis trackers. 15 Trackers fitted with Solar World 285W Mono modules and 2 trackers fitted with 270W Bisun modules.  Each tracker is fitted with a STP 15000 inverter to allow for generation above STC.


Yield & Performance  |  The 202kW plant is generating between 1600 -1900kWh per day.  A record performance of 2408kWh was recorded in Nov 2016.

Summit Renewables

Return to our Home Page.

HOUSEHOLDS

Grid tied & building integrated solutions for household needs.

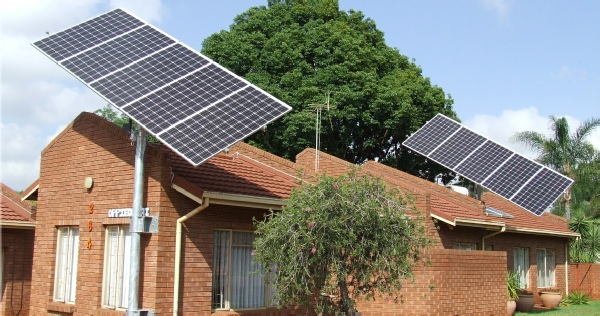

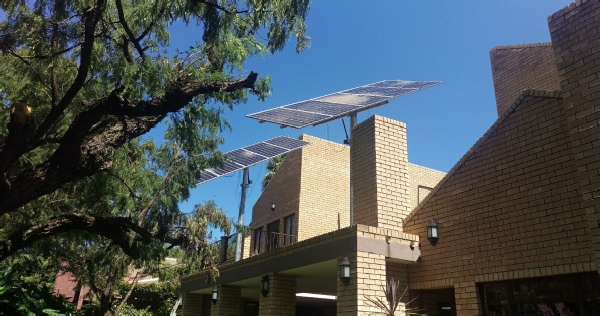

ELDOPARK ESTATE

Grid tied building integrated Single axis tracker with battery backup and solar geyser, gas stoves.


The system consists of 2 x Top 8.5 thirty degree single axis trackers with Solar block batteries, 10 x 320W Solarworld modules.


Yield & Performance  | 25 - 30kWh per day.

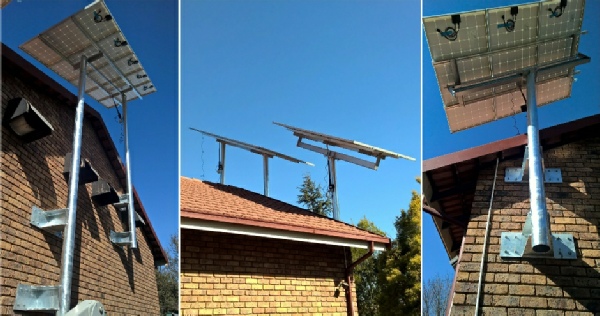

ELDORAIGNE

Grid tied building integrated Single axis tracker with battery backup and solar geyser, gas stoves.


The system consists of 2 x Top 8.5 thirty degree single axis tracker with Solar block batteries, 10 x 320W Solarworld modules.


Yield & Performance  | 25 - 30kWh per day.

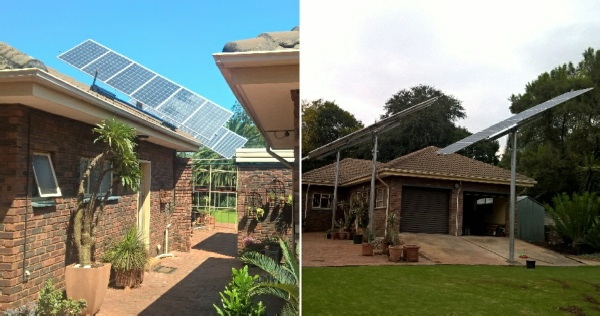

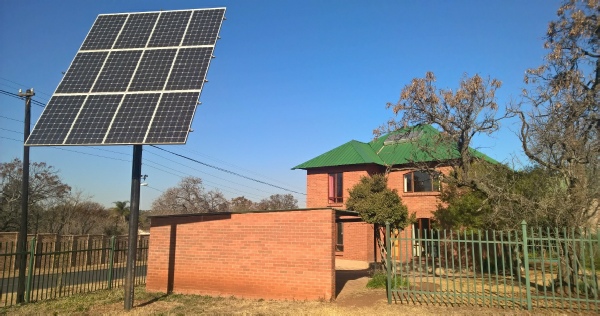

RASLOUW

Off grid solution with backup and warm water, borehole water and Scarab sewage system.


The system consists of Deger 3000NT dual axis tracker, 12 x 240W Bosch Mono modules, 600ah FNB battery, Solsquare warm water system.


Yield & Performance  | 25 - 32kWh per day, 9855kWh per year.

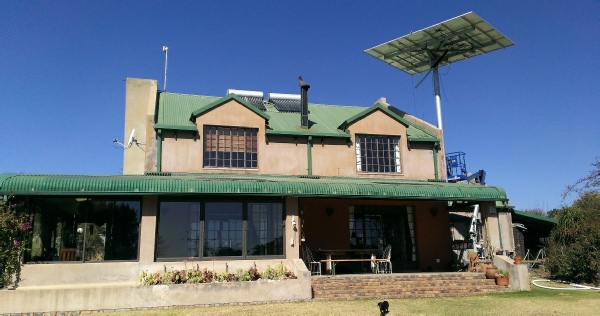

KYALAMI

Grid tied building integrated Dual axis tracker with battery backup and solar geyser, gas stoves.


The system consists of a Deger 3000NT dual axis tracker, 12 x 260W Bosch Poly modules, Solar block battery.


Yield & Performance | 3,1kWp - 28kWh per day.



RASLOUW

Grid tied solution with back up and warm water for home and clinic.


The system consists of a Top 8.5 thirty degree single axis tracker at clinic with Solar block, S60H Single axis tracker on slab with 12 modules - 320W Solarworld modules.


Yield & Performance | Top 8.5 Single axis : 2,56kWp-20kWh per day, S60H Single axis tracker : 3,84kWp- 30kWh per day.



ELDORAIGNE

Grid tied building integrated Single axis tracker with battery backup and solar geyser, gas stoves.


The system consists of 3 x Top 8.5 thirty degree single axis tracker  with Solar block batteries, 18 x 280W Solarworld modules.


Yield & Performance | 40 - 50kWh per day


ELDORAIGNE

Gauteng

ELDORAIGNE

Gauteng

RASLOUW

Gauteng

KYALAMI

Gauteng

RASLOUW

Gauteng

ELDORAIGNE

Gauteng

FACTORIES

Grid-tied solutions & backup support.

M&P BODIES

Alberton

JONES MASJIENE

Koster

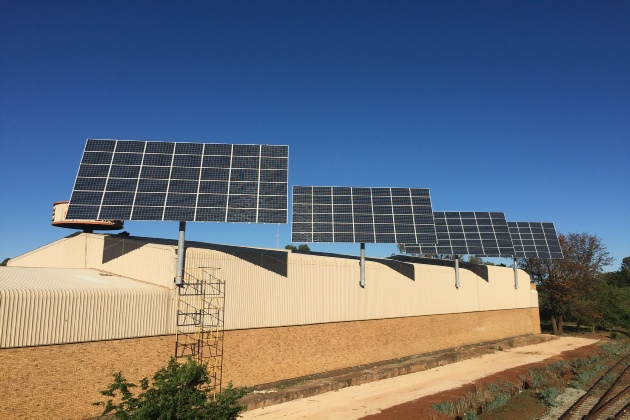

KOSTER

Grid tied building integrated Dual axis tracker with battery backup.


The system consists of 4 x D100 Dual axis trackers, 168 x 250W Jinko Modules.


Yield & Performance | 40kWp - 380 - 460kWh per day.

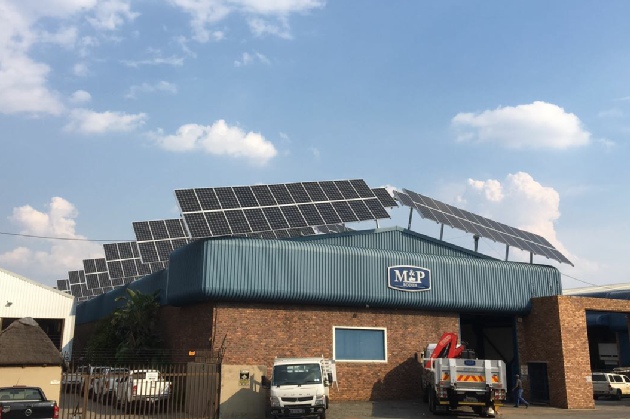

M&P BODIES

Grid tied system with backup to support manufacturing.


20xS70 single axis tracker modified to roof installation.  Each tracker fitted with 21x Solarworld 285w modules.  Battery backup is supplied with Multicluster 12 and Hopecke batteries


Yield & Performance | The plant is 124kWp and produces between 650 - 1100kWh per day

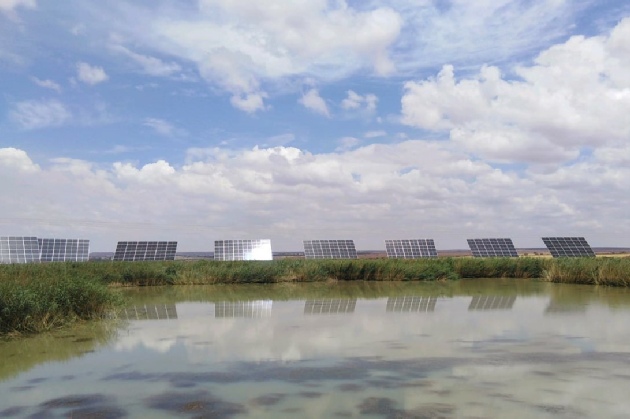

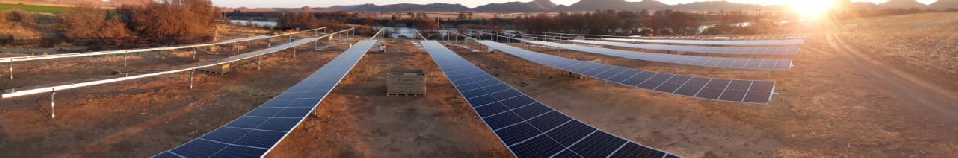

DE BRON - BOOSTER PUMP STATION

Due to the high cost of agricultural land in this region, the only area where a renewable solution could be installed, was on the dam wall. The system is grid tied with net metering for self-consumption. The system supply power for the booster pumps to the pump station.


The system consists of 16 x D100 dual-axis trackers on 4m masts. Each tracker fits 36 x Canadian Solar 380W modules. SMA Core 1 inverters where installed.


Yield & Performance  | 1860kWh/day


DE BRON

Western Cape

WASCHBANK

The system is grid tied with net metering designed to sustain pumping operation from the river.


The system consists of 9 x S100-PF-SR Deger single-axis with MLD trackers fitted with 62 x Canadian Solar 380W modules per tracker. SMA Core 1 inverters was installed.


Yield & Performance  | 1562kWh/day


WASCHBANK

Free State

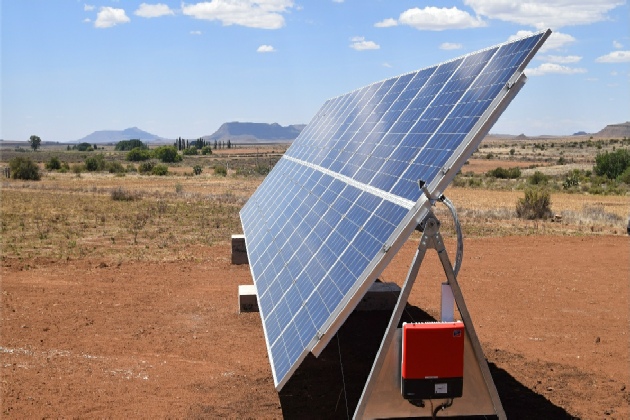

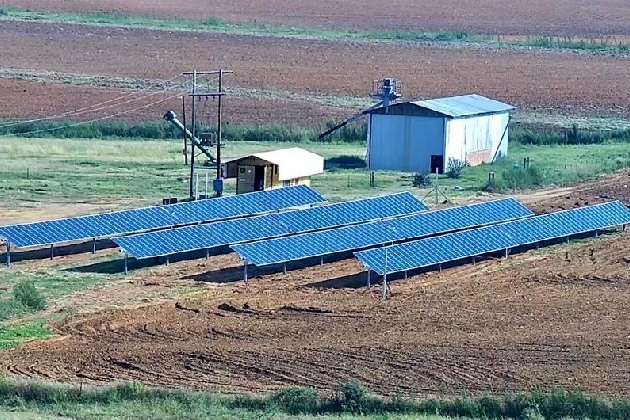

KROONSTAD

Free State

KROONSTAD

The system is grid tied with a step up/down, replacing two additional feed-in points. The plant sustains the farm operation.


The system consists of 4 x S100-PF-SR Deger single-axis with MLD trackers fitted with 62 x Longi LR6-72PE-370W modules each. SMA Core 1 inverters was installed.


Yield & Performance  | 660kWh/day

JACOBSDAL

Free State

JACOBSDAL

The plant was designed in support of the factory operation as a grid tied solution.


The system consists of 7 x S100-PF-SR Deger with MLD trackers fitted with 62 x Canadian Solar 380W modules per tracker. SMA Core 1 inverters was installed.


Yield & Performance  | 1187kWh/day

DE BRON

Western Cape

DE BRON - PIVOT PUMP STATION

Grid tied solution with net-metering designed to sustain water supply to the pivot station.


The system consists of 9 x S100-PF-SR single-axis Deger with MLD trackers with 62 x Canadian Solar 375W modules fitted on each tracker. SMA Core 1 inverters where installed on the AC side.


Yield & Performance  | The plant design is around 209kW DC. The average yield calculated for the site is 1504kWh/day.

PRETORIA

Gauteng

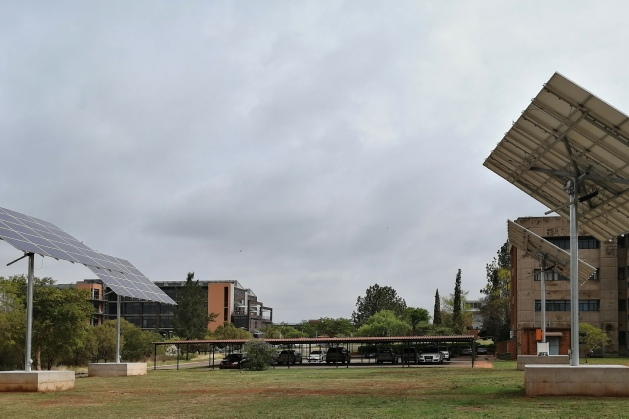

CSIR

The plant was designed for the operation of the renewable offices of the Council for Scientific and Industrial Research (CSIR).


The system consists of 4 x 5000NT Deger dual-axis with MLD trackers on 6m masts. Three trackers are fitted with 20 x Canadian Solar 395W modules and one tracker is fitted with 20 x Jinko Solar 330W modules. SMA Core1 inverter was installed.


Yield & Performance  | 258kWh/day

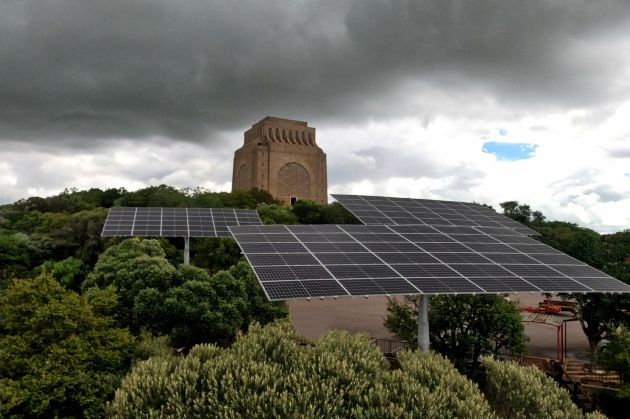

VOORTREKKER MONUMENT

Hybrid Grid tied Solution on main ring for own consumption.


The Voortrekker Monument embarked on their renewable energy journey and became one of the first South African historical sites to install renewable energy at their premises.


Yield & Performance  | The 3 x D100 dual axis Trackers were installed and integrated with the main ring of the Monument. The system is a 45kWp hybrid system that is connected to a hybrid inverter and battery, to sustain the standby requirement, with a generator and fuel saving functionality.

VOORTREKKER MONUMENT

Pretoria

OUR  PROJECT

PORTFOLIO.


Whatever your environment may be, we will find the suitable renewable energy solution.
